YY SERIES Solar Acoustic Panel for Transportation Infrastructure
The YY SERIES solar acoustic panels combine solar energy production with sound insulation, ideal for highways, railways, and urban infrastructure.
Key Highlights
- Sound insulation of 26 dB (standard product)
- Thermal insulation compliant with GB/8424-2020
- Anti-glare surface with gloss ≤6 GU at 60° incidence
- Zero spontaneous breakage, reducing secondary injury risk
- Dimensions customized for seamless integration with acoustic barriers
Technologies
Polymer Chain Group Modification Technology
- ·Front sheet light transmittance ≥91%
- ·Water vapor transmission rate: <0.8g/㎡·day
- ·25-Year power warranty, ensuring long-term high performance
Enhanced Resin-Fiber Interface
- ·Static load resistance up to 5400 Pa
- ·IEC 61215 hail test certified
Fire-Rated Acoustic Core Technology
- ·Complies with GB 8624 B1 fire rating
- ·Certified to EN 13501 Class B for building materials
Nano Oxide Coating Self-Cleaning Technology
- ·Inhibits static electricity and dust accumulation, reducing hot spot effects
- ·Quick rinse cleaning boosts power generation by 3-5%

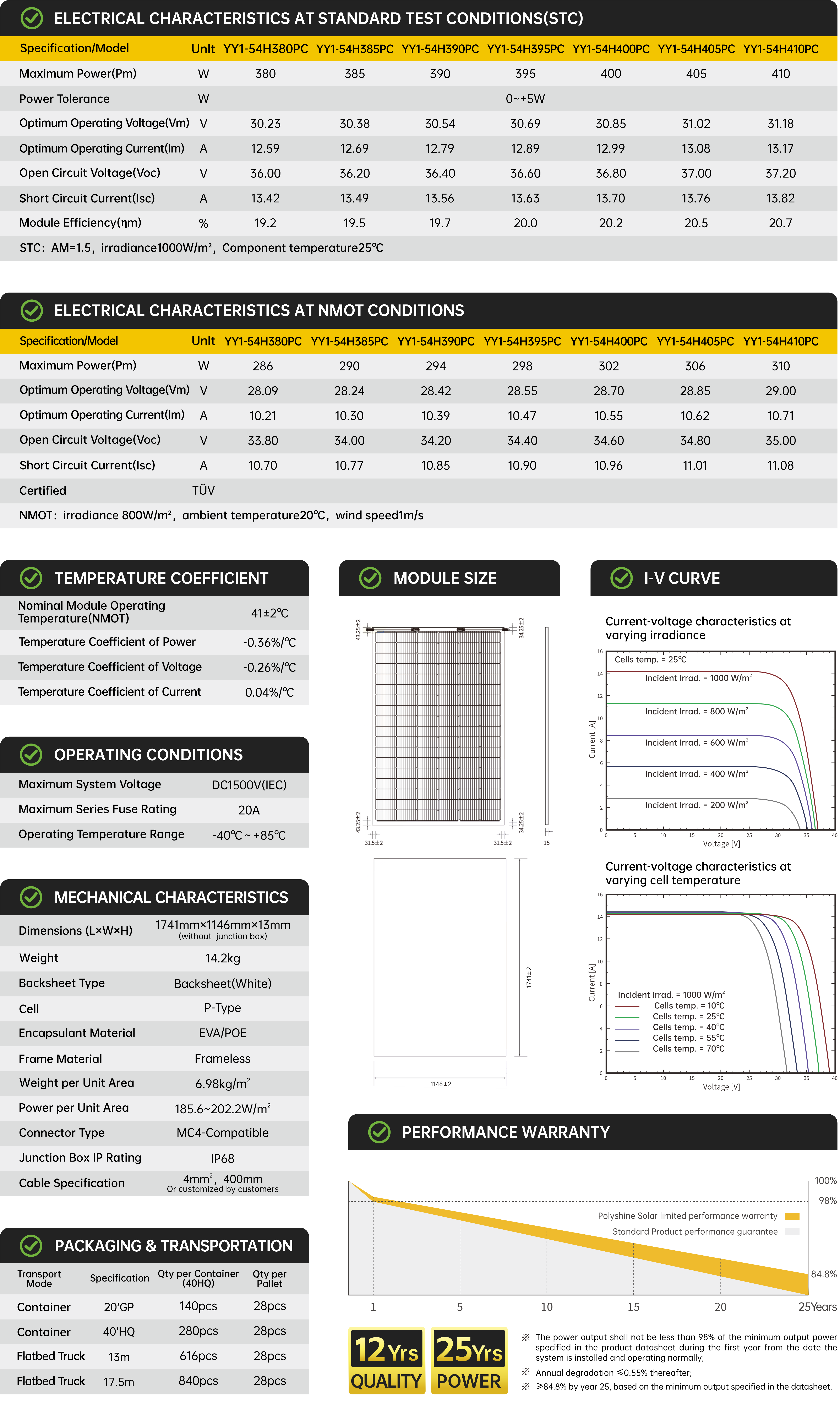

Specification Sheets
YY1-54HxxxPC 380~410W
Features
Dual function
High sound insulation
Anti-glare surface
Zero spontaneous breakage
